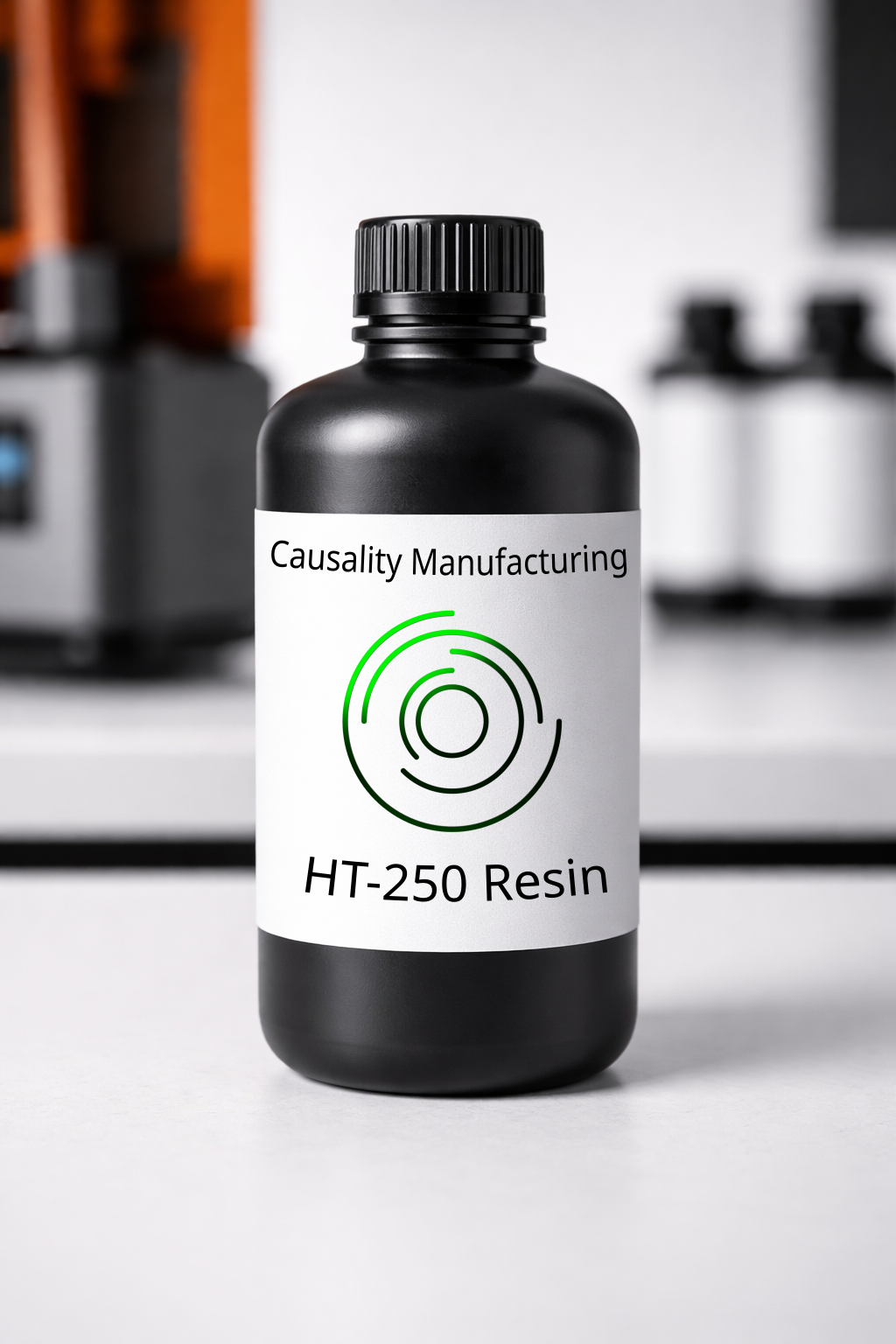

HT250 High Performance Resin

from $33.99

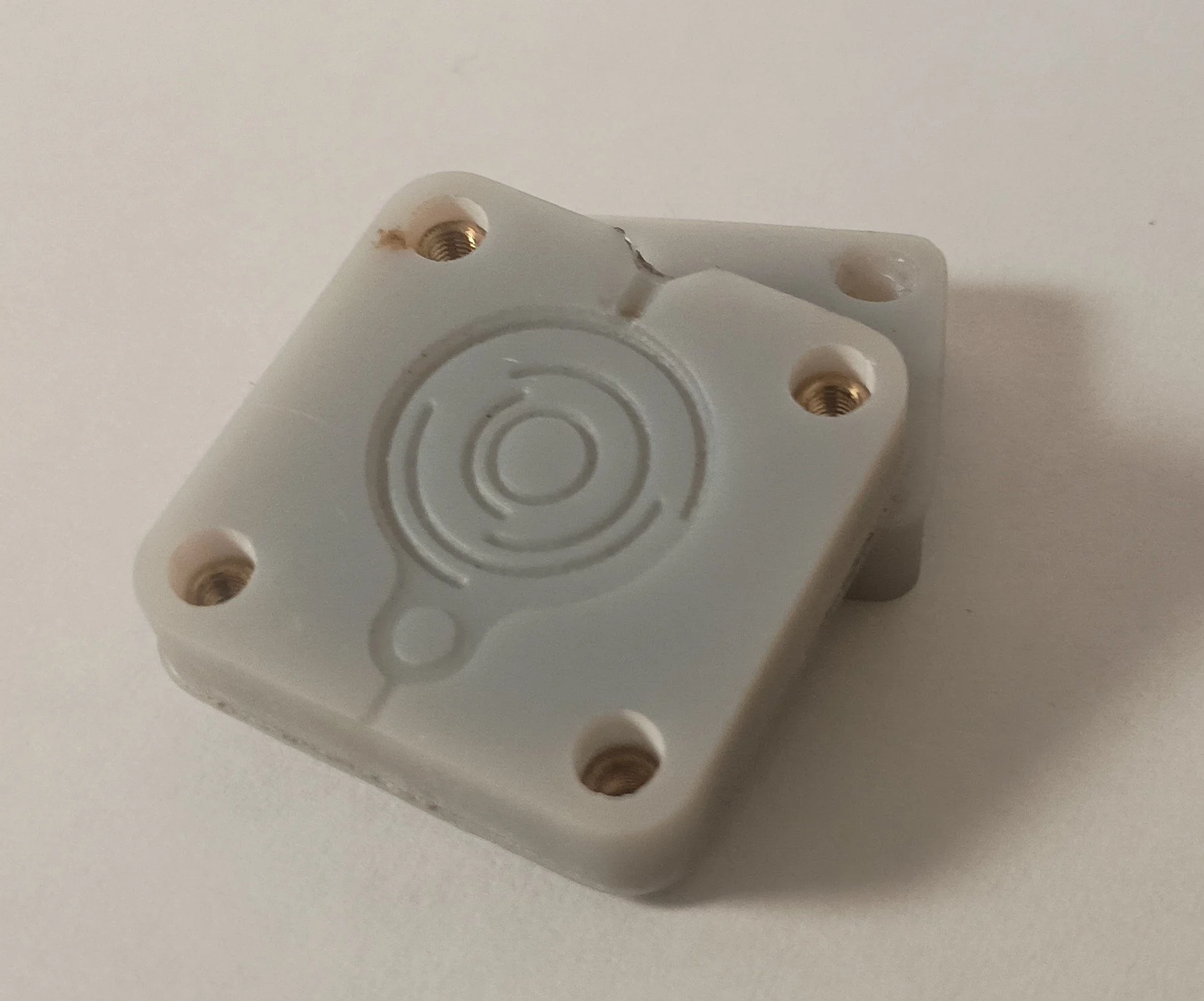

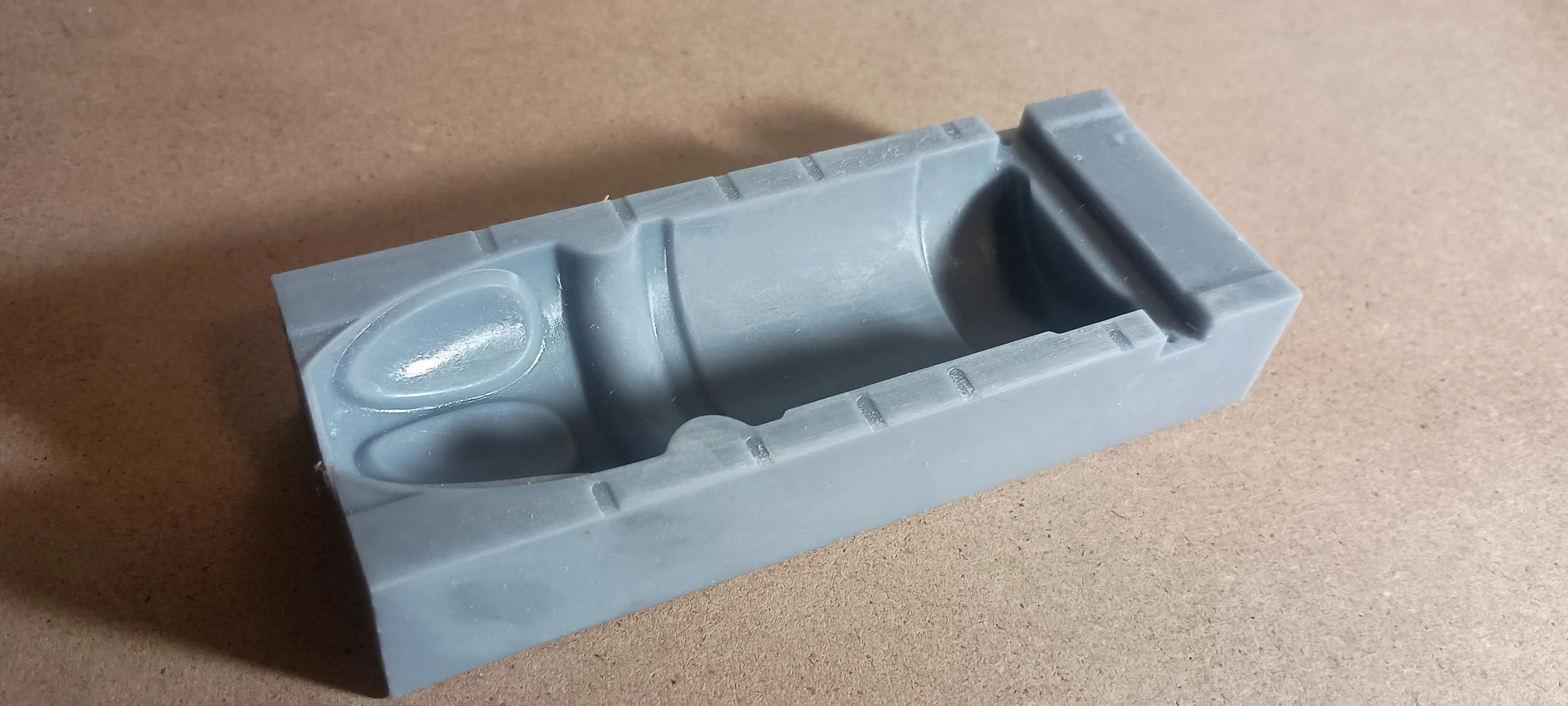

Our HT250 resin is designed for performance from the ground-up. This resin bridges the gap between traditional photopolymer based additive manufacturing and the demanding applications that manufacturers like you need. This resin is tough, temperature resistant, chemically resistant, and easy to print on most MSLA or DLP machines. We use HT250 to print tooling, low volume injection molds, soldering fixtures, and other parts that would destroy standard materials.

HT-250 offers excellent ablative performance, not commonly found in high performance resins. In extreme heat environments, HT250 will form a surface layer of carbon foam, which radiates extreme heat and provides insulating properties to the underlying material.

Available in 250ml (sample size), 500ml, and 1L bottles.

Size:

Our HT250 resin is designed for performance from the ground-up. This resin bridges the gap between traditional photopolymer based additive manufacturing and the demanding applications that manufacturers like you need. This resin is tough, temperature resistant, chemically resistant, and easy to print on most MSLA or DLP machines. We use HT250 to print tooling, low volume injection molds, soldering fixtures, and other parts that would destroy standard materials.

HT-250 offers excellent ablative performance, not commonly found in high performance resins. In extreme heat environments, HT250 will form a surface layer of carbon foam, which radiates extreme heat and provides insulating properties to the underlying material.

Available in 250ml (sample size), 500ml, and 1L bottles.

Material Properties

Heat Deflection Temperature (HDT): 250C at 0.48MPa

Tensile strength: 68MPa at 50C

Flexural Modulus: 4200MPa at 50C

Elongation at Break: 4% at 50C

Warnings and Safety Instructions

HT250 is a skin irritant, causes extreme eye irritation, and can be extremely harmful or lethal if swallowed.

Wear proper PPE at all times when handling HT250 (as you should with any resin material). HT250 poses risks for both chemical and thermal burns if it contacts human skin. It is essential to wear properly fitting gloves (to avoid tearing while handling), long sleeves to cover arms, eye protection, and a mask to avoid accidental exposure.

If you come into skin contact with HT250, avoid UV exposure and immediately rinse affected area thoroughly with warm water and soap. Contact your poison control center immediately if resin is ingested.


Download SDS

Instructions for Use

Resin may crystallize during transportation and storage. This is normal, and can be reversed via gently heating the resin in the bottle (or inside of any storage container) to 60C for about 1 hour. If you do not have access to controlled heating equipment, you can leave the bottle in a warm sunny place and shake it occasionally to achieve a similar result.


We recommend starting with the following settings and adjusting as needed.

MSLA

Layer Height:0.05mm
Bottom Layer Cure Time: 30s
Bottom Layer Retraction speed: 1-2mm/s
Cure Time: 3s
Retraction Speed: 6mm/s
Retraction Distance: 6mm+

DLP

Layer Height: 0.05 mm
Bottom Layer Cure Time: 20s
Bottom Layer Retraction speed: 1-2mm/s
Cure Time: 2s
Retraction Speed: 6mm/s
Retraction Distance: 6mm+


After Printing is complete, thoroughly wash parts in an IPA cleaning solution before post-curing. We recommend a 2-bath system (one “dirty” alcohol wash to remove the majority of uncured resin and one “clean” wash to fully clean the surface without contaminating the solution as rapidly).

To fully strengthen parts, we recommend UV curing while heating the parts to 60-80C. If you are unable to heat parts while curing, similar results can be achieved by heating the parts after UV curing and holding at 80C for 1 hour. We recommend a curing time of at least 15 minutes with exposure to all surfaces, and add 2 minutes per mm of part thickness past 8mm.
